Weidmüller
1983500000
Housing for rectangular connectors
Manufacturer part number: 1983500000
Serie: HDC enclosures
Type: HDC 48B SDLU 2M40G
EAN-code: 4032248687787
SKU Omnical: 2235803
Stock: 0.
Estimated lead time: 64 days *
PreOrder
R63
$
313.50
per item
$
203.77
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

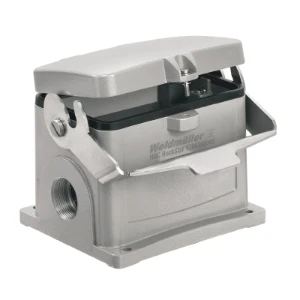

1983500000 Weidmüller Housing for rectangular connectors
HDC enclosures, Size: 12, Protection degree: IP65, Base enclosure, End-locking clamp, lower side, Standard, with cover, Size of cable entries: M 40
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Shape
Rectangular
Height
(mm)
120
Width
(mm)
166.2
Type of housing
Socket case
Position cable feed
Other
Position of the shackle
Base unit
With cable screw gland
No
With hinged lid
Yes
Material housing
Aluminium
With interlocking device
Yes
Locking mechanism
Single locking lever
Inflammability class of insulation material according to with UL94
Other
Operating temperature
(°C)
-40 - 125
EMC-version
No
Corrosion resistant
Yes
UV resistant
Yes
Degree of protection (IP), mounted
IP65
Depth
(mm)
143
Coating housing
Powder coating
Colour housing
Grey
Material adapter plate
Aluminium
Mounting method of the cable gland
Metric
With sealing
Yes
Number of openings
0
Number of conduit inlets
1
Stock and logistics
Height
0.121 m
Width
0.146 m
Depth
0.151 m
Packaging
Package
Weight
1.562 kg
HS code
85389099
Country of Origin
CN
