Weidmüller
2018110000
Printed circuit board connector
Manufacturer part number: 2018110000
Serie: OMNIMATE Signal - series BL/SL 5.08
Type: SL 5.08HC/21/180B 3.2SN GN BX
EAN-code: 4050118401486
SKU Omnical: 3084549
Stock: 0.
Estimated lead time: 30 days *
PreOrder
R52
€
471,09
per 100 items
€
427,28
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

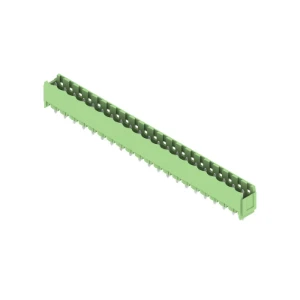

2018110000 Weidmüller Printed circuit board connector
Weidmüller Printed circuit board connector PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Numb
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connector model
Fixed connector
Contact type
Pin
Number of plug-in contacts
21
Number of plug-in contact rows
1
Modular spacing contacts
(mm)
5.08
Modular spacing connections
(mm)
5.08
Angle PCB/contact
90° (upwards vertical)
Rated current In
(A)
21
Rated voltage
(V)
320
Rated surge voltage
(kV)
4
Over voltage category
II
Pollution degree
2
Material of contact surface
Tin
Type of electric connection
THR connection
Length pin
(mm)
3.2
Material insulation body
Polyamide (PA)
Colour housing
Green
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-50 - 100
Type of PCB fastening
Other
Type of fastening
Solder
Packaging type
Other
Type of banding
Other
Type of connection
Flexible PCB-connector
Number of poles
21
Stock and logistics
Height
0.033 m
Width
0.112 m
Depth
0.153 m
Packaging
Package
Weight
0.185 kg
HS code
85366990
Country of Origin
DE
