Weidmüller
2051410000
Ground terminal block
Manufacturer part number: 2051410000
Serie: A-series
Type: A3C 4 PE
EAN-code: 4050118411713
SKU Omnical: 2478981
Stock:
400 items.
Delivery time: 1-2 business days.
InStock
XBV
$
4.49
per item
$
3.85
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

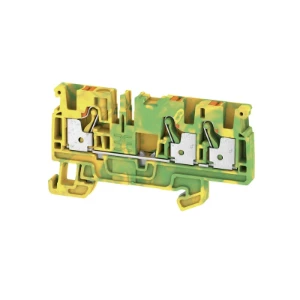

2051410000 Weidmüller Ground terminal block
Weidmüller Ground terminal block PE terminal, PUSH IN, Green/yellow, 4 mm², 800 V, Number of connection
Datasheet
PEN function possible
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 6
Width
(mm)
6.1
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Plug-in connection
Connection position
Above
Number of levels
1
Number of clamp positions per level
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.1
Height at lowest possible mounting height
(mm)
74
Length
(mm)
39.5
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
74
Depth
(mm)
39.5
Stock and logistics
Height
0.048 m
Width
0.158 m
Depth
0.162 m
Packaging
Package
Weight
0.788 kg
HS code
85369010
Country of Origin
DE
