Weidmüller
2428510000
Feed-through terminal block
Manufacturer part number: 2428510000
Serie: A-series
Type: A3T 2.5
EAN-code: 4050118438208
SKU Omnical: 2479265
Stock:
1,576 items.
Delivery time: 1-2 business days.
InStock
XBV
$
5.58
per item
$
4.78
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

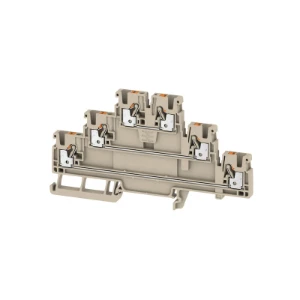

2428510000 Weidmüller Feed-through terminal block
Weidmüller Feed-through terminal block Multi-tier modular terminal, PUSH IN, dark beige, 2.5 mm², 800 V, 800
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Rated current In
(A)
22
Width
(mm)
5.1
Rated voltage
(V)
800
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Plug-in connection
Connection position
Above
Number of levels
3
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
64.5
Length
(mm)
116
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height
(mm)
116
Depth
(mm)
64.5
Suitable for conductor material
Copper
Stock and logistics
Height
0.074 m
Width
0.137 m
Depth
0.245 m
Packaging
Package
Weight
1.087 kg
HS code
85369010
Country of Origin
RO
