Weidmüller
2429860000

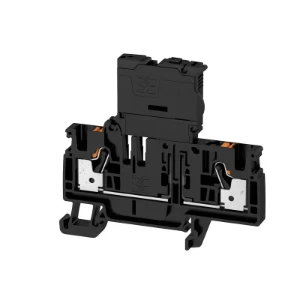

Fuse terminal block
Manufacturer part number: 2429860000
Serie: A-series
Type: AFS 4 2C BK
EAN-code: 4050118439717
SKU Omnical: 2479323
Stock:
185 items.
Delivery time: 1-2 business days.
InStock
XBV
$
6.84
per item
$
5.86
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2429860000 Weidmüller Fuse terminal block
Weidmüller Fuse terminal block Fuse terminal, PUSH IN, black, 4 mm², 6.3 A, 400 V, Number of connecti
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Supply voltage for defect-indication
(V)
250 - 250
Width
(mm)
6.1
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 6
Rated current In
(A)
6.3
Rated voltage
(V)
400
Type of electrical connection 1
Push-in clamp connection
Number of levels
1
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.1
Height at lowest possible mounting height
(mm)
68
Length
(mm)
74
Closing plate required
Yes
Colour
Black
Height
(mm)
74
Depth
(mm)
68
Stock and logistics
Height
0.077 m
Width
0.16 m
Depth
0.161 m
Packaging
Package
Weight
0.924 kg
HS code
85369010
Country of Origin
RO
