Weidmüller
2436390000
(Knife) disconnect terminal block
Manufacturer part number: 2436390000
Serie: W-Series
Type: WTR 4 STB/O.TNHE
EAN-code: 4050118448351
SKU Omnical: 2479424
Stock: 0.
Estimated lead time: 13 days *
PreOrder
XBU
$
4.56
per item
$
3.91
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

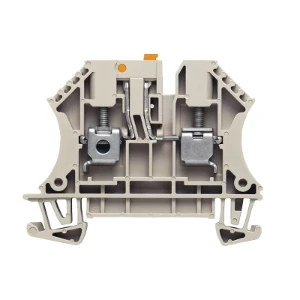

2436390000 Weidmüller (Knife) disconnect terminal block
Weidmüller (Knife) disconnect terminal block Test-disconnect terminal, Screw connection, dark beige, 4 mm², 32 A, 5
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 6
Connectable conductor cross section multi-wired
(mm²)
1.5 - 6
Rated current In
(A)
32
Width
(mm)
6.1
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
No
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-50 - 120
Width/grid dimension
(mm)
6.1
Height at lowest possible mounting height
(mm)
48
Closing plate required
Yes
Colour
Beige
Type of slitting
None
Type of cross disconnection
None
With integrated test socket
Yes
Length
(mm)
60
Height
(mm)
60
Depth
(mm)
48
Stock and logistics
Height
0.058 m
Width
0.147 m
Depth
0.169 m
Packaging
Package
Weight
0.65 kg
HS code
85369010
Country of Origin
RO
