Weidmüller
2490440000
Ground terminal block
Manufacturer part number: 2490440000
Serie: A-series
Type: A2C 10 PE
EAN-code: 4050118500844
SKU Omnical: 1602163
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XBV
€
485,98
per 100 items
€
416,48
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

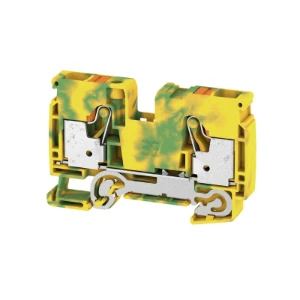

2490440000 Weidmüller Ground terminal block
Weidmüller Ground terminal block PE terminal, PUSH IN, Green/yellow, 10 mm², 1000 V, Number of connecti
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
PEN function possible
Yes
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 16
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 10
Connectable conductor cross section solid-core
(mm²)
0.5 - 10
Connectable conductor cross section multi-wired
(mm²)
0.5 - 16
Width
(mm)
10
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Plug-in connection
Connection position
Above
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
10
Height at lowest possible mounting height
(mm)
80.5
Length
(mm)
51.5
Closing plate required
Yes
Colour
Green/yellow
Height
(mm)
80.5
Depth
(mm)
51.5
Stock and logistics
Height
0.059 m
Width
0.147 m
Depth
0.167 m
Packaging
Package
Weight
0.988 kg
HS code
85366990
Country of Origin
RO
