Weidmüller
2502930000
Feed-through terminal block
Manufacturer part number: 2502930000
Serie: W-Series
Type: WPD 233 2X300/2X300 BN
EAN-code: 4050118516753
SKU Omnical: 2480573
Stock: 0.
Estimated lead time: 33 days *
PreOrder
XUI
$
98.00
per item
$
71.45
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

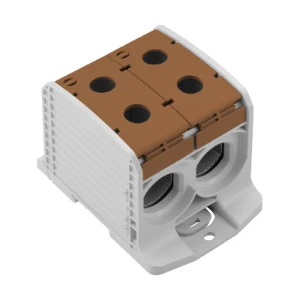

2502930000 Weidmüller Feed-through terminal block
Weidmüller Feed-through terminal block Potential distributor terminal, Screw connection, brown, 300 mm², 520
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
240 - 240
Connectable conductor cross section solid-core
(mm²)
300 - 300
Connectable conductor cross section multi-wired
(mm²)
300 - 300
Rated current In
(A)
520
Width
(mm)
82.6
Rated voltage
(V)
1000
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
4
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-50 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
82.6
Height at lowest possible mounting height
(mm)
83.5
Length
(mm)
118
Explosion-tested version 'Ex e'
Yes
Closing plate required
No
Colour
Brown
Internally connected stages
No
Height
(mm)
118
Depth
(mm)
83.5
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
0.092 m
Width
0.097 m
Depth
0.122 m
Packaging
Package
Weight
0.7 kg
HS code
85369010
Country of Origin
DE
