Weidmüller
2530550000

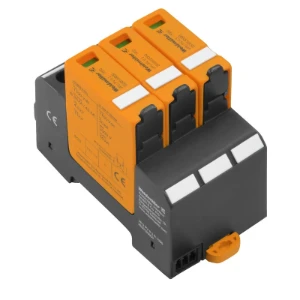

Surge protection device for power supply systems
Manufacturer part number: 2530550000
Serie: VPU series
Type: VPU PV II 3 1000
EAN-code: 4050118540550
SKU Omnical: 3084391
Stock: 0.
Estimated lead time: 36 days *
PreOrder
XER
$
118.83
per item
$
107.78
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2530550000 Weidmüller Surge protection device for power supply systems
Weidmüller Surge protection device for power supply systems Surge voltage arrester (power supply systems), Surge protection II, T
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of poles
3
Nominal voltage DC
(V)
1000
Max. continuous voltage DC
(V)
1000
Max. PV-voltage
(V)
1000
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
No
Degree of protection (IP)
IP20
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
Number of conductors (without earthing)
3
Integrated short-circuit protection
No
Stock and logistics
Height
0.066 m
Width
0.101 m
Depth
0.111 m
Packaging
Package
Weight
0.396 kg
HS code
85363090
Country of Origin
SI
