Weidmüller
2531290000
Feed-through terminal block
Manufacturer part number: 2531290000
Serie: A-series
Type: A2T 2.5 3C
EAN-code: 4050118541700
SKU Omnical: 3082875
Stock:
1,729 items.
Delivery time: 1-2 business days.
InStock
XBV
$
4.02
per item
$
3.45
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

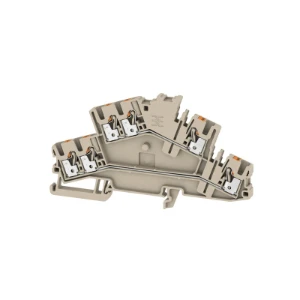

2531290000 Weidmüller Feed-through terminal block
Weidmüller Feed-through terminal block Multi-tier modular terminal, PUSH IN, dark beige, 2.5 mm², 800 V, 800
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Rated current In
(A)
22
Width
(mm)
5.1
Rated voltage
(V)
800
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Plug-in connection
Connection position
Above
Number of levels
2
Number of clamp positions per level
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
64
Length
(mm)
114.5
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Height
(mm)
114.5
Depth
(mm)
64
Suitable for conductor material
Copper
Stock and logistics
Height
0.071 m
Width
0.133 m
Depth
0.245 m
Packaging
Package
Weight
0.986 kg
HS code
85369010
Country of Origin
RO
