Weidmüller
2535130000

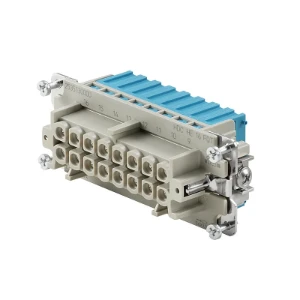

Contact insert for rectangular connectors
Manufacturer part number: 2535130000
Serie: HDC insert
Type: HDC HE 16 FQT BL
EAN-code: 4050118578232
SKU Omnical: 3083675
Stock: 0.
Estimated lead time: 64 days *
PreOrder
R63
€
32,83
per item
€
21,34
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2535130000 Weidmüller Contact insert for rectangular connectors
Weidmüller Contact insert for rectangular connectors Contact insert (industry plug-in connectors), Female, 500 V, 16 A, Num
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
16
Rated current In
(A)
16
Contact type
Bus
Width
(mm)
34
With housing
No
Contact insert without contacts
No
Shape
Rectangular
Modular version
No
Material connector insert
Thermoplastic
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Pollution degree
3
Type of electric connection
Other
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
1 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
1 - 2.5
Connectable conductor cross section solid-core
(mm²)
1 - 2.5
Connectable conductor cross section multi-wired
(mm²)
1 - 2.5
Material of contact surface
Silver
Material of contact insert
Thermoplastic
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Operating temperature
(°C)
-40 - 125
Height
(mm)
36.3
Depth
(mm)
84.5
Stock and logistics
Height
0.04 m
Width
0.072 m
Depth
0.114 m
Packaging
Package
Weight
0.094 kg
HS code
85389099
Country of Origin
CN
