Weidmüller
2551510000
Feed-through terminal block
Manufacturer part number: 2551510000
Serie: A-series
Type: A2C 35
EAN-code: 4050118628012
SKU Omnical: 3082583
Stock:
59 items.
Delivery time: 1-2 business days.
InStock
XBV
€
5,67
per item
€
4,86
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

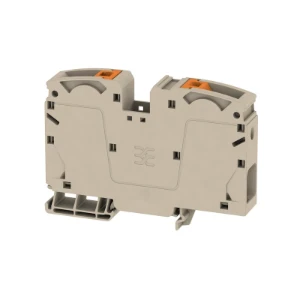

2551510000 Weidmüller Feed-through terminal block
Weidmüller Feed-through terminal block Feed-through terminal block, PUSH IN, dark beige, 35 mm², 125 A, 1000
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
10 - 35
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
2.5 - 35
Connectable conductor cross section solid-core
(mm²)
2.5 - 16
Connectable conductor cross section multi-wired
(mm²)
10 - 35
Rated current In
(A)
125
Width
(mm)
16
Rated voltage
(V)
1000
Type of electrical connection 1
Plug-in connection
Type of electrical connection 2
Plug-in connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
16
Height at lowest possible mounting height
(mm)
71.5
Length
(mm)
101.5
Explosion-tested version 'Ex e'
Yes
Closing plate required
No
Colour
Beige
Internally connected stages
No
Height
(mm)
101.5
Depth
(mm)
71.5
Suitable for conductor material
Copper
Stock and logistics
Height
0.081 m
Width
0.109 m
Depth
0.178 m
Packaging
Package
Weight
0.855 kg
HS code
85369010
Country of Origin
RO
