Weidmüller
2562010000
Fuse terminal block
Manufacturer part number: 2562010000
Serie: W-Series
Type: WFS 4 10-36V BL
EAN-code: 4050118570489
SKU Omnical: 3082591
Stock: 0.
Estimated lead time: 13 days *
PreOrder
XBU
€
11,91
per item
€
10,21
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

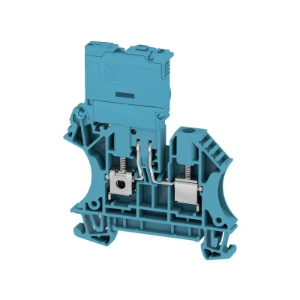

2562010000 Weidmüller Fuse terminal block
Weidmüller Fuse terminal block Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 36 V, Number of c
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
LED
Supply voltage for defect-indication
(V)
36 - 36
Voltage type for defect indication
AC/DC
Width
(mm)
6.1
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 6
Connectable conductor cross section multi-wired
(mm²)
1.5 - 6
Rated current In
(A)
6.3
Rated voltage
(V)
36
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Connection position
Sideways
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.1
Height at lowest possible mounting height
(mm)
75
Length
(mm)
62.5
Closing plate required
Yes
Colour
Blue
Height
(mm)
62.5
Depth
(mm)
75
Stock and logistics
Height
0.09 m
Width
0.159 m
Depth
0.178 m
Packaging
Package
Weight
0.975 kg
HS code
85369095
Country of Origin
RO
