Weidmüller
2581230000
Printed circuit board terminal
Manufacturer part number: 2581230000
Serie: OMNIMATE Signal - series LSF
Type: LSF-SMT 5.00/06/90 1.5SN BK RL PRT
EAN-code: 4050118590210
SKU Omnical: 3083783
Stock: 0.
Estimated lead time: 33 days *
PreOrder
R52
€
236,13
per 100 items
€
214,17
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

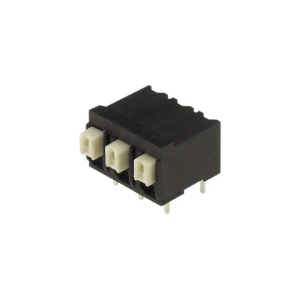

2581230000 Weidmüller Printed circuit board terminal
Weidmüller Printed circuit board terminal PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.00, 1.5 mm², Number of pol
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Height
(mm)
10
Number of electrical connections
6
Number of levels
1
Modular spacing connections
(mm)
5
Angle PCB/conductor connection
0°/180° (horizontal)
Rated current In
(A)
17.5
Rated voltage
(V)
320
Rated surge voltage
(kV)
4
Over voltage category
II
Pollution degree
2
Connection type conductor
Push-in clamp connection
Connectable conductor cross section solid-core
(mm²)
0.2 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 1.5
Connection type PCB
THR connection
Material connection surface
Tin
Length pin
(mm)
1.5
Material insulation body
Liquid crystal polymer
Colour housing
Black
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-50 - 120
Type of PCB fastening
Other
Type of fastening
Solder
Type of banding
Other
Degree of protection (IP), mounted
IP20
Stock and logistics
Height
0.065 m
Width
0.352 m
Depth
0.361 m
Packaging
Package
Weight
1.375 kg
HS code
85369010
Country of Origin
DE
