Weidmüller
2636180000

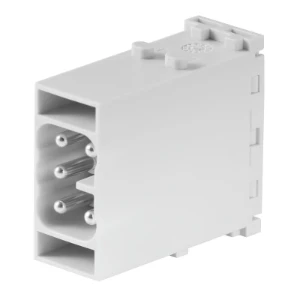

Contact insert for rectangular connectors
Manufacturer part number: 2636180000
Serie: ModuPlug
Type: HDC MHE 5 MP
EAN-code: 4050118690996
SKU Omnical: 1273233
Stock: 0.
Estimated lead time: 64 days *
PreOrder
R63
€
18,36
per item
€
11,93
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2636180000 Weidmüller Contact insert for rectangular connectors
Weidmüller Contact insert for rectangular connectors Module insert for industrial connector, 16 A, Number of poles: 5, PUSH
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
5
Rated current In
(A)
16
Contact type
Pin
Width
(mm)
14.5
Material connector insert
Thermoplastic
Rated voltage
(V)
400
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Push-in clamp connection
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Material of contact insert
Thermoplastic
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Operating temperature
(°C)
-40 - 125
Height
(mm)
38.9
Depth
(mm)
34
Stock and logistics
Height
0.022 m
Width
0.051 m
Depth
0.088 m
Packaging
Package
Weight
0.023 kg
HS code
85366990
Country of Origin
CN
