Weidmüller
2675270000
Fuse terminal block
Manufacturer part number: 2675270000
Serie: A-series
Type: AFS 4 2C 30-70V DL BK
EAN-code: 4050118733457
SKU Omnical: 4055383
Stock: 0.
Estimated lead time: 16 days *
PreOrder
XBV
€
1.030,76
per 100 items
€
883,36
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

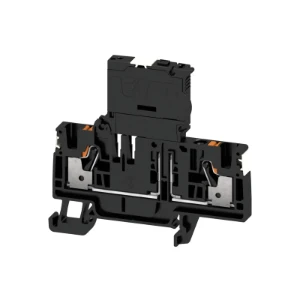

2675270000 Weidmüller Fuse terminal block
Weidmüller Fuse terminal block Fuse terminal, PUSH IN, black, 4 mm², 6.3 A, 70 V, Number of connectio
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Width
(mm)
6.1
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 6
Rated current In
(A)
6.3
Rated voltage
(V)
70
Type of electrical connection 1
Push-in clamp connection
Number of levels
1
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.1
Length
(mm)
74
Closing plate required
Yes
Colour
Black
Height
(mm)
74
Depth
(mm)
68
Stock and logistics
Height
0.077 m
Width
0.159 m
Depth
0.261 m
Packaging
Package
Weight
1.051 kg
HS code
85369095
Country of Origin
DE
