Weidmüller
2697280000
Timer relay
Manufacturer part number: 2697280000
Serie: TFI-SERIES
Type: TFIS 24-240VUC 1CO ON
EAN-code: 4050118705294
SKU Omnical: 4055609
Stock: 0.
Estimated lead time: 64 days *
PreOrder
XBT
$
54.88
per item
$
49.77
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

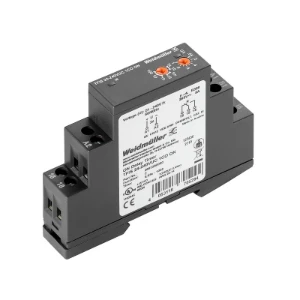

2697280000 Weidmüller Timer relay
Weidmüller Timer relay Timing relay, 24...240 V UC -15 % / +10 %, 1 CO contact (AgNi) , 8 A,
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
Function delay-on energization
Yes
Function delay on de-energization
No
Function floating contact on energization
No
Function floating contact on de-energization
No
Width
(mm)
17.5
Function star-delta
No
Function pulse shaping
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
With plug-in socket
No
Remote operation possible
No
Suitable as remote control
No
Pluggable on auxiliary contact block
No
Rated control supply voltage at AC 50 Hz
(V)
20.4 - 264
Rated control supply voltage at AC 60 Hz
(V)
20.4 - 264
Rated control supply voltage at DC
(V)
20.4 - 264
Voltage type for actuating
AC
Time range
(s)
0.5 - 360000
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
1
Outputs, reversible delayed/undelayed
No
With semiconductor output
No
Height
(mm)
87
Depth
(mm)
60
Suitable for DIN rail (top hat rail) mounting
Yes
Suitable for front mounting
No
Operating voltage at AC 50 Hz
(V)
250 - 250
Operating voltage at AC 60 Hz
(V)
250 - 250
Operating voltage at DC
(V)
30 - 30
Voltage type (operating voltage)
AC/DC
Degree of protection (IP)
IP20
Stock and logistics
Height
0.031 m
Width
0.072 m
Depth
0.091 m
Packaging
Package
Weight
0.069 kg
HS code
85364900
Country of Origin
AT
