Weidmüller
2906900000
Cable connector
Manufacturer part number: 2906900000
Serie: OMNIMATE Signal - series BL/SL 5.08
Type: BLZP 5.08HC/11/180F SN GN BX
EAN-code: 4099986536593
SKU Omnical: 4174728
Stock: 0.
Estimated lead time: 31 days *
PreOrder
R52
$
916.57
per 100 items
$
831.33
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

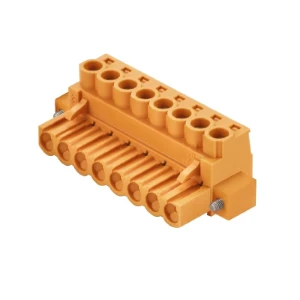

2906900000 Weidmüller Cable connector
Weidmüller Cable connector PCB connector (wire connection), 320 V, 23 A, Pitch in mm: 5.08, 4 mm²
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Bus
Modular spacing contacts
(mm)
5.08
Modular spacing connections
(mm)
5.08
Angle contact/conductor connection
90° (upwards vertical)
Rated current In
(A)
21
Rated voltage
(V)
320
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Type of electric connection
Screw connection
Connectable cable type
Tubular cable
Material of contact surface
Tin
Material contact
Copper
Material insulation body
Polybutylene terephthalate (PBT)
Material housing
Plastic
Colour housing
Green
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Operating temperature
(°C)
-50 - 100
Degree of protection (IP), mounted
Other
Type of connection
Flexible PCB-connector
Number of poles
11
Coating housing
Uncoated
Stock and logistics
Height
0.027 m
Width
0.13 m
Depth
0.338 m
Packaging
Package
Weight
0.576 kg
HS code
85366990
Country of Origin
DE
