Weidmüller
8000085263
Printed circuit board connector
Manufacturer part number: 8000085263
Serie:
Type:
EAN-code: 4064675623229
SKU Omnical: 4339799
Stock: 0.
Estimated lead time: 9 days *
PreOrder
R52
€
593,64
per 100 items
€
538,43
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

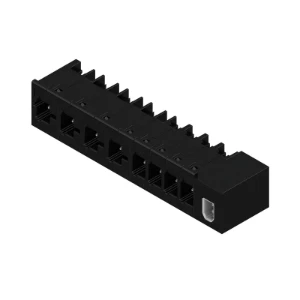

8000085263 Weidmüller Printed circuit board connector
Weidmüller Printed circuit board connector Hybrid connector (board connection), 7.50 mm, Number of poles: 8, Outg
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connector model
Fixed connector
Contact type
Pin
Modular spacing contacts
(mm)
7.5
Modular spacing connections
(mm)
7.5
Angle PCB/contact
0°/180° (horizontal)
Rated current In
(A)
26.9
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Material of contact surface
Tin
Type of electric connection
THR connection
Length pin
(mm)
3.2
Material insulation body
Polyamide (PA)
Colour housing
Black
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-40 - 85
Type of PCB fastening
Other
Type of fastening
Solder
Type of banding
Other
Type of connection
Flexible PCB-connector
Number of poles
8
Stock and logistics
Packaging
Package
Weight
0.109 kg
HS code
85366990
