Wiha
45215
Multimeter
Manufacturer part number: 45215
Serie:
Type: Multimeter
EAN-code: 4010995452155
SKU Omnical: 4210856
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XEI
€
212,33
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

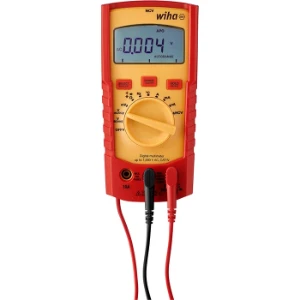

45215 Wiha Multimeter
Wiha Multimeter WIHA Digitale Multimeter CAT IV 600 V, CAT III 1000 V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Indication
Analogue/digital
Multiple display
Yes
Measuring range selection
Manual/automatic
Max. voltage measuring range, AC
(V)
1000
Lowest resolution, AC voltage
0.1 mV
Max. voltage measuring range, DC
(V)
1000
Lowest resolution, DC voltage
0.1 mV
Max. current measuring range, AC
(A)
10
Lowest resolution, AC current
0.1 µA
Max. current measuring range, DC
(A)
10
Lowest resolution, DC current
0.1 µA
Max. resistance measuring range
(M Ohm)
200
Lowest resolution, resistance
0.01 Ohm
Resistance test/diode test
Yes
Capacitance measurement
Yes
Frequency measurement
Yes
With decibel measurement (dB)
No
Relative value measurement
Yes
Inductance measurement
No
With conductivity measurement
No
Data hold
Yes
Max. value storage
Yes
Min. value storage
Yes
Peak value memory
No
Duty cycle measurements
No
Measured value memory
No
Interface
No
Measuring circuit category
CAT IV
Temperature measurement TC
Yes
Max. temperature measuring range
(°C)
1350
Max. capacitance measuring range
(µF)
60000
Lowest resolution, capacitance
Other
Max. frequency measuring range
(kHz)
60
Lowest resolution, frequency
0.1 Hz
Continuity test
Yes
Rotational speed measuring
No
Bluetooth interface
No
IR interface
No
Automatic circuit breaker
No
Max. voltage measuring circuit category
(V)
600
With display backlight
Yes
Temperature measurement
Yes
Degree of protection (IP)
IP40
Scaling bar graph lineair
Yes
Scaling bar graph logarithmic
No
Current supply
Battery
Stock and logistics
Height
45 cm
Width
80 cm
Depth
150 cm
Packaging
box
Weight
653 g
HS code
90303370
