Wöhner
33336

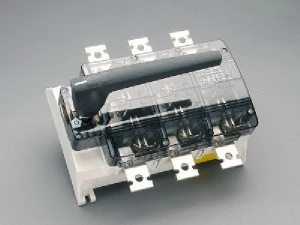

Switch disconnector
Manufacturer part number: 33336
Serie: CAPUS®EasyUse
Type: Paneelmontage
EAN-code: 4021267333362
SKU Omnical: 3324464
Stock: 0.
Estimated lead time: 5 days *
PreOrder
D53
€
780,61
per item
€
608,10
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
33336 Wöhner Switch disconnector
Wöhner Switch disconnector 33336 Lastscheider
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
3
Rated permanent current Iu
(A)
800
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Device construction
Complete device in housing
Max. rated operation voltage Ue AC
(V)
500
Rated operation power at AC-23, 400 V
(kW)
475
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
50
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Type of control element
Toggle
Interlockable
Yes
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP), front side
IP54
Version as reversing switch
No
Rated operating voltage
(V)
500 - 500
Rated permanent current at AC-21, 400 V
(A)
800
Rated operation power at AC-3, 400 V
(kW)
475
Rated short-time withstand current lcw
(kA)
20
Switching power at 400 V
(kW)
520
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
800
Degree of protection (NEMA)
Other
Stock and logistics
Height
290 mm
Width
237 mm
Depth
330 mm
Packaging
box
Weight
9.44 kg
HS code
85363090
Country of Origin
BR
