Wöhner
36109
Motor starter/Motor starter combination
Manufacturer part number: 36109
Serie: MOTUSContactronControl
Type: Hybrid-motorstarters
EAN-code: 4021267361099
SKU Omnical: 3324749
Stock: 0.
Estimated lead time: 5 days *
PreOrder
D53
€
270,99
per item
€
211,10
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

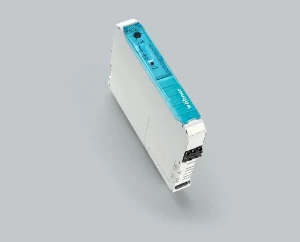

36109 Wöhner Motor starter/Motor starter combination
Wöhner Motor starter/Motor starter combination 36109 Vervangingsmodule
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at DC
(V)
19.2 - 30
Voltage type for actuating
DC
Width
(mm)
22.5
Rated operation current Ie
(A)
0.6
Overload release current setting
(A)
0.075 - 0.6
With short-circuit release
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP20
Height
(mm)
160
Depth
(mm)
120
Type of motor starter
Direct online starter (DOL)
Rated operation current at AC-3, 400 V
(A)
0.6
Rated conditional short-circuit current, type 1, 480 Y/277 V
(A)
50
Rated conditional short-circuit current, type 2, 400 V
(A)
10
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Ambient temperature, upper operating limit
(°C)
70
Temperature compensated overload protection
Yes
Release class
CLASS 10
Type of electrical connection for auxiliary- and control current circuit
Spring clamp connection
Rail mounting possible
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
With transformer
No
Suitable for emergency stop
Yes
Coordination class according to IEC 60947-4-3
Class 2
External reset possible
No
With fuse
Yes
Degree of protection (NEMA)
Other
Stock and logistics
Height
160 mm
Width
119.5 mm
Depth
22.5 mm
Packaging
box
Weight
0.509 kg
HS code
85364900
Country of Origin
DE
