Wöhner
36153

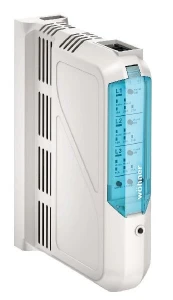

Motor starter/Motor starter combination
Manufacturer part number: 36153
Serie: OMUS
Type: Hybrid-motorstarters
EAN-code: 4021267361532
SKU Omnical: 3324756
Stock: 0.
Estimated lead time: 5 days *
PreOrder
D53
€
506,67
per item
€
394,70
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
36153 Wöhner Motor starter/Motor starter combination
Wöhner Motor starter/Motor starter combination 36153 OMUS
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated control supply voltage at AC 50 Hz
(V)
400 - 400
Rated control supply voltage at AC 60 Hz
(V)
48 - 400
Rated control supply voltage at DC
(V)
19.2 - 30
Voltage type for actuating
DC
Rated operation power at AC-3, 400 V
(kW)
17
Width
(mm)
36
Rated operation current Ie
(A)
25
Overload release current setting
(A)
16 - 25
With short-circuit release
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP)
IP20
Height
(mm)
200
Depth
(mm)
144
Type of motor starter
Other
Rated operation power at AC-3, 230 V, 3-phase
(kW)
10
Rated power, 460 V, 60 Hz, 3-phase
(kW)
20
Rated operation current at AC-3, 400 V
(A)
25
Rated conditional short-circuit current, type 1, 480 Y/277 V
(A)
30
Rated conditional short-circuit current, type 2, 400 V
(A)
10
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Ambient temperature, upper operating limit
(°C)
55
Temperature compensated overload protection
Yes
Type of electrical connection for auxiliary- and control current circuit
Spring clamp connection
Rail mounting possible
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
With transformer
No
Suitable for emergency stop
No
Coordination class according to IEC 60947-4-3
Class 1
External reset possible
No
With fuse
Yes
Degree of protection (NEMA)
Other
Stock and logistics
Height
200 mm
Width
144 mm
Depth
36 mm
Packaging
box
Weight
0.458 kg
HS code
85364900
Country of Origin
DE
