Schneider Electric

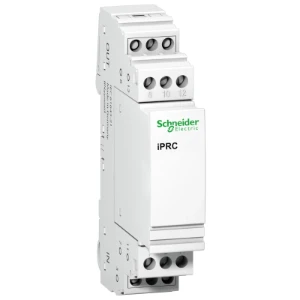

A9L16337
Surge protection device for data networks/MCR-technology
Manufacturer part number: A9L16337
Serie: PF'clic, PRC'clic
EAN-code: 3606480383519
SKU Omnical: 2086984
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZZL
€
157,20
per item
€
106,74
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
A9L16337 Schneider Electric Surge protection device for data networks/MCR-technology
Schneider Electric Surge protection device for data networks/MCR-technology PRC - Overspanningsbeveiliging - Telecom 2P - In=10kA/Ue=130V - Type 2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage AC
(V)
130 - 130
Max. continuous voltage AC
(V)
130
Max. continuous voltage DC
(V)
180
Nominal discharge surge current (8/20)
(kA)
10
Nominal load current
(A)
0.45
Voltage protection level core/core
(V)
160
Voltage protection level core/earth
(V)
200
Voltage protection level core/signal ground
(V)
200
Voltage protection level signal ground/protective ground
(V)
160
Limiting frequency
(MHz)
0.05
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Screw terminal
Pro-active thermo-control
Yes
With remote signalling contact
No
Signalling at the device
None
Explosion-tested version
No
Signal disconnection
Yes
Number of conductors (without earthing)
2
Earthing via
Separate conductor
Assembly width
(mm)
18
Degree of protection (IP)
IP20
Stock and logistics
Height
2 cm
Width
6.7 cm
Depth
9.5 cm
Packaging
box
Weight
0.069 kg
HS code
8536301000
Country of Origin
DE
